IVF EQUIPMENTS

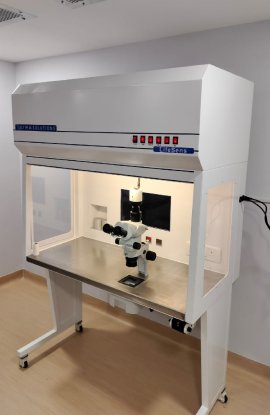

1.NEIMA LAMINAR AIRFLOW 4X2 or 6X2

The laminar flow devices are used to provide aseptic environment for the medical devices to maintain the clean environment. These are made to meet clean air as per the requirements with help of filtration, illumination, Noise and Vibration. Laminar Flow Units are available with Vertical air flow arrangement. Laminar Cabinets are made of Mild Steel coated with rust resistant epoxy powder coating for the outside body and Filter assembly. The Main Table and working area is completely made up of Stainless Steel SS304 grade. The main function of laminar flow cabinets has two time filtration of atmospheric air which is blown through High efficiency particular air filter popularly known as “HEPA” and prefilter/ Carbon filter.

Construction: Laminar Cabinets are made of Mild Steel coated with rust resistant epoxy powder coating for the outside body and Filter assembly. The Main Table and working area is completely made up of Stainless Steel SS304 grade. The main function of laminar flow cabinets has two time filtration of atmospheric air which is blown through High efficiency particular air filter popularly known as “HEPA” and prefilter/ Carbon filter.

Specification:

a. Stainless Steel Table with provision for two working Microscope

b. Class : ISO5/ CLASS 100

c. built in One/ Two LCD screen

d. Magnelic pressure gauge flow indicator, differential pressure indicator.

e. picture qrabbing provision for image view

f. SS table inteqrated with one or two glass heating stage controlled by electronic temperature controller with digital display

g. Digital Microprocessor based Temperature regulator.

h. Noise level less than 55 db.

i. Work station have provision of UV & white Light

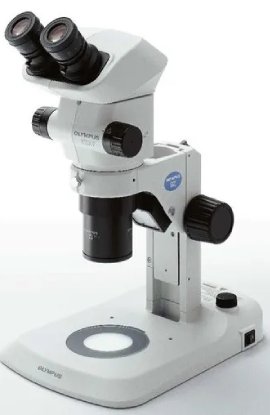

2.SZX-7 STEREOZOOM MICROSCOPE

The SZX-7 stereo microscope’s Galilean optical system offers excellent image quality, especially when using a digital microscope camera. The microscope is suitable for life science imaging applications with high color fidelity optics, a 7:1 zoom ratio, and a universal LED stand. Selection of lens surface coatings and apochromatic zoom optics make it possible to observe and document specimen in more similar coloration to their original authentic colors.

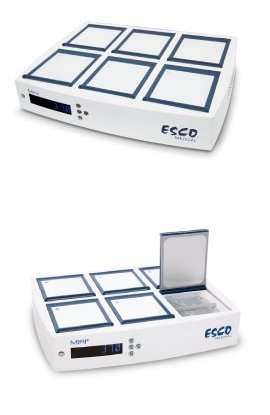

3.MIRI MULTI ROOM BENCHTOP INCUBATOR (DRY & HUMIDIFIED 6-CHAMBER)

The Esco MIRI® Multiroom incubator is the best option for securing embryos in your IVF laboratory. With its six (6) independent chambers, not only does it provide a bigger capacity to accommodate more embryos. It also ensures that environmental parameters are maintained even when the neighboring chambers are opened. It also gives the best temperature recovery, accuracy, and uniformity in the IVF incubator market with its heated lid design. This feature ensures that temperature given to your embryos are not only sourced from the bottom of the dish but is also given on the top with a set point of 37.2C to ensure that exactly 37.0C is given to your samples.

The Esco MIRI® Multiroom incubator gives you the option to use pure N2 and CO2 gases which are cheaper than premixed gases and recirculates these gas inserts giving you the best value for money. This also gives you the flexibility to change your gas concentration when you want to optimize embryo culture protocols in your laboratory. The MIRI® Multiroom is also compatible with the most common brands of culture dishes in the market .

4.MINI MIRI HUMIDIFIED BENCHTOP INCUBATOR

The Mini MIRI® Humidity Incubator is a humidified mini bench top incubator that uses either premixed gases or pure gas (N2 and CO2) inserts that pass through a tri-gas mixing chamber to ensure precise gas concentrations before entering the incubator chambers. Afterward, this gas recirculates and goes again through the gas mixing chamber which helps in minimizing gas consumption.

The Mini MIRI® Humidity Incubator comes with a data logger software that monitors the temperature, gas concentration, gas input pressure, gas flow rates, and alarms. All real-time parameters can be viewed conveniently in graphs when the Mini MIRI® is connected to a PC and the data logger software can also monitor multiple incubators at the same time. Weekly reports can be exported for the users' convenience

5.THERMO-Heracell CO2 Incubator

Thermo Scientific Heracell I series CO2 incubators are available in two convenient sizes: 150L (5.3cu ft) and 160L and in non-corrosive stainless steel or 100% pure antimicrobial copper. Heracell I series CO2 Incubators provide the ideal in vitro environment, clean, reliable and easy to use, protecting your valuable gametes while optimizing cell growth.

Heracell series offers a range of innovative features such as high quality sensors, highly efficient fan assisted conviction, patented humidity system for faster recovery rates and touch screen which improves your visibility and control of important Incubator information helping you to achieve your culturing goals. This model is supplied with 3 Gas Tight inner doors (3 inner door for segment access.

6.Digital Oocyte Aspiration Pump

The Digital Oocyte Aspiration Pump is a new generation instrument, specifically developed to provide smooth, low volume vacuum at pre-determined negative pressures, allowing simple, low turbulence, oocyte recovery. Air operated foot switch operation provides smooth and precise working condition.

7.ICSI MICROSCOPE

Our inverted microscope system helps improve the quality of ICSI, which requires both speed and precision. With an optical system exclusively developed for ICSI, the microscope enables clear visualization of the spindle in a metaphase II oocyte through the oculars. Observing the spindle helps improve ICSI precision by confirming the oocyte’s phase of maturation and the position of the pipette injection to avoid damage to the spindle.

As the demand for the use of intracytoplasmic sperm injection (ICSI) applications has increased, so has the burden of the microscopy work it involves.Olympus’ in vitro fertilization technology (IVF) helps facilitate the ICSI workflow, improving the speed and efficiency of each procedure. Unaffected by the polarizing effect of plastic dishes, Olympus’ relief contrast enables 3D imaging of oocytes so you can check the condition of the zona pellucida. Correction collars on the 20X and 40X objectives can optimize the image acquisition, based on the thickness of the bottom of the dish.

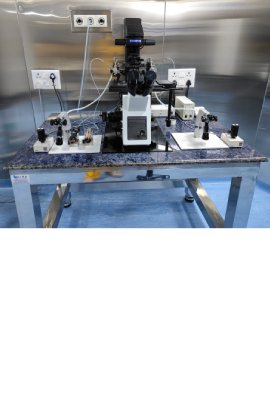

8.NEIMA ANTIVIBRATION TABLE FOR ICSI

Anti-Vibration Table is used to drop unwanted vibrations that delimit high-magnification inverted microscope during In Vitro Fertilization and Intra-Cytoplasmic Sperm Injection procedures.

Anti vibration table uses a passive damping mechanism to isolate microscopes from vibration during micromanipulation procedures. we use imported isolation pads and special mechanical systems to resist vibration from external sources.

9.ZANDER AIR PURIFIER-100C

Absorbs toxic chemicals and gases

3 stage filtration

Hospital grade Hepa and Carbon filter

Photo Catalytic Oxidation Chamber

Ultra Violet Light Converts VOC and CAC’s into CO2 and CO2

10. TRINOCULAR PHASE CONTRAST MICROSCOPE: CX-43

MAKE- OLYMPUS CX43 Microscope frame for transmitted microscopy with Kohler LED ( Life: 60,000 Hrs.) illumination, Z Focusing Stroke per rotation for coarse adjustment knob: 36.8 mm, Focusing stopper · Torque adjustment for coarse adjustment knob, inward tilt quintuple revolving nosepiece, XY mechanical stage right-handle low position stage, Traveling range (X × Y): 76 mm × 52 mm, wire movement, single specimen holds. Universal abbe condenser NA 1.25 with oil immersion · Universal condenser with 7 turret positions for BF (4‒100X), 2X, DF, Ph1, Ph2, Ph3, FL.

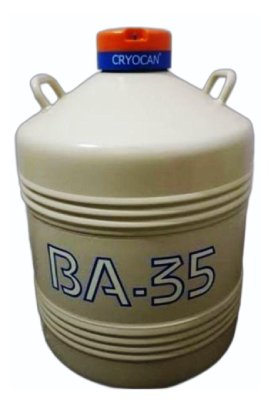

11.CRYOPRESERVATION /LIQUID NITROGEN CONTAINER

It is the process of preserving oocyte, sperms and embryos at sub-zero temperatures, generally at an embryogenesis stage corresponding to pre-implantation that is from fertilization to the blastocyst stage. (Typically −196°C using liquid nitrogen). We provide the best range of liquid nitrogen container of Indian & Imported cryocan with effective & timely delivery. BA11, Jumbo-12, TA-55 models are available for storage and transport application

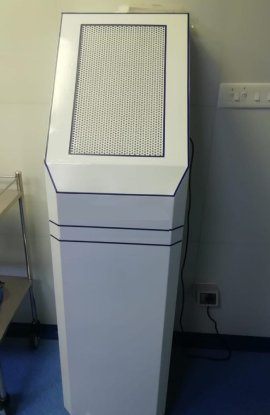

12.NEIMA POSITIVE PRESSURE MODULE

HEPA FILTER: HEPA (High Efficiency particulate arrester) effectively adsorbs particles less than 0.3 micron with an efficiency of more than 99.9%. it effectively captures particles, dust & germs. Activated carbon filter: catalysers & decomposes the harmful gas like formaldehyde. H2S, NH3 efficiently. ACF acts like a sponge & traps most of the airborne gases & Odors. Fiber filter: it traps the dust particles & thereby increasing the life of the HEPA & other filters. UV Lamps: UV Light with wavelength 254nm can effectively destroys most of the microns & germs thriving in air effectively due to its germicidal properly. The life of UV lamp is up to 8000 hours of working. The sterilization rate is more than 97.6%. Available in two models Air-Care 300 & 500 and area covered up to 300 Sqft & 500 Sqft .
